在互联网应用中，大文件上传是一个常见而棘手的挑战。传统的单文件上传方式在面对大文件时经常面临超时、内存溢出等问题。本文将深入探讨如何利用Spring Boot实现高效的分块上传方案，解决大文件传输痛点。
一、为什么需要文件分块上传
当文件上传超过100MB时，传统上传方式存在三大痛点：
- 网络传输不稳定： 单次请求时间长，容易中断
- 服务器资源耗尽： 大文件一次性加载导致内存溢出
- 上传失败代价高： 需要重新上传整个文件
分块上传的优势
- 减小单次请求负载
- 支持断点续传
- 并发上传提高效率
- 降低服务器内存压力

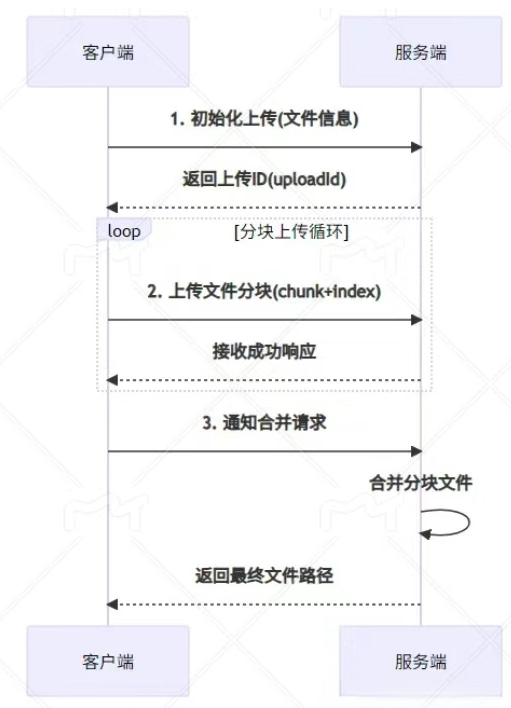

二、分块上传核心原理
三、SpringBoot实现方案
1.核心依赖
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.11.0</version>
</dependency>
</dependencies>2.控制层实现
@RestController
@RequestMapping("/upload")
publicclassChunkUploadController{
privatefinal String CHUNK_DIR = "uploads/chunks/";
privatefinal String FINAL_DIR = "uploads/final/";
/**
* 初始化上传
* @param fileName 文件名
* @param fileMd5 文件唯一标识
*/
@PostMapping("/init")
public ResponseEntity<String> initUpload(
@RequestParam String fileName,
@RequestParam String fileMd5){
// 创建分块临时目录
String uploadId = UUID.randomUUID().toString();
Path chunkDir = Paths.get(CHUNK_DIR, fileMd5 + "_" + uploadId);
try {
Files.createDirectories(chunkDir);
} catch (IOException e) {
return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
.body("创建目录失败");
}
return ResponseEntity.ok(uploadId);
}
/**
* 上传分块
* @param chunk 分块文件
* @param index 分块索引
*/
@PostMapping("/chunk")
public ResponseEntity<String> uploadChunk(
@RequestParam MultipartFile chunk,
@RequestParam String uploadId,
@RequestParam String fileMd5,
@RequestParam Integer index){
// 生成分块文件名
String chunkName = "chunk_" + index + ".tmp";
Path filePath = Paths.get(CHUNK_DIR, fileMd5 + "_" + uploadId, chunkName);
try {
chunk.transferTo(filePath);
return ResponseEntity.ok("分块上传成功");
} catch (IOException e) {
return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
.body("分块保存失败");
}
}
/**
* 合并文件分块
*/
@PostMapping("/merge")
public ResponseEntity<String> mergeChunks(
@RequestParam String fileName,
@RequestParam String uploadId,
@RequestParam String fileMd5){
// 1. 获取分块目录
File chunkDir = new File(CHUNK_DIR + fileMd5 + "_" + uploadId);
// 2. 获取排序后的分块文件
File[] chunks = chunkDir.listFiles();
if (chunks == null || chunks.length == 0) {
return ResponseEntity.badRequest().body("无分块文件");
}
Arrays.sort(chunks, Comparator.comparingInt(f ->
Integer.parseInt(f.getName().split("_")[1].split("\\.")[0])));
// 3. 合并文件
Path finalPath = Paths.get(FINAL_DIR, fileName);
try (BufferedOutputStream outputStream =
new BufferedOutputStream(Files.newOutputStream(finalPath))) {
for (File chunkFile : chunks) {
Files.copy(chunkFile.toPath(), outputStream);
}
// 4. 清理临时分块
FileUtils.deleteDirectory(chunkDir);
return ResponseEntity.ok("文件合并成功：" + finalPath);
} catch (IOException e) {
return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
.body("合并失败：" + e.getMessage());
}
}
}3.高性能文件合并优化
当处理超大文件（10GB以上）时，需要避免将所有内容加载到内存：
// 使用RandomAccessFile提高性能
publicvoidmergeFiles(File targetFile, List<File> chunkFiles)throws IOException {
try (RandomAccessFile target =
new RandomAccessFile(targetFile, "rw")) {
byte[] buffer = newbyte[1024 * 8]; // 8KB缓冲区
long position = 0;
for (File chunk : chunkFiles) {
try (RandomAccessFile src =
new RandomAccessFile(chunk, "r")) {
int bytesRead;
while ((bytesRead = src.read(buffer)) != -1) {
target.write(buffer, 0, bytesRead);
}
position += chunk.length();
}
}
}
}四、前端实现关键代码（Vue）
1.分块处理函数
// 5MB分块大小
const CHUNK_SIZE = 5 * 1024 * 1024;
/**
* 处理文件分块
*/
functionprocessFile(file) {
const chunkCount = Math.ceil(file.size / CHUNK_SIZE);
const chunks = [];
for (let i = 0; i < chunkCount; i++) {
const start = i * CHUNK_SIZE;
const end = Math.min(file.size, start + CHUNK_SIZE);
chunks.push(file.slice(start, end));
}
return chunks;
}2.带进度显示的上传逻辑
asyncfunctionuploadFile(file) {
// 1. 初始化上传
const { data: uploadId } = await axios.post('/upload/init', {
fileName: file.name,
fileMd5: await calculateFileMD5(file) // 文件MD5计算
});
// 2. 分块上传
const chunks = processFile(file);
const total = chunks.length;
let uploaded = 0;
awaitPromise.all(chunks.map((chunk, index) => {
const formData = new FormData();
formData.append('chunk', chunk, `chunk_${index}`);
formData.append('index', index);
formData.append('uploadId', uploadId);
formData.append('fileMd5', fileMd5);
return axios.post('/upload/chunk', formData, {
headers: {'Content-Type': 'multipart/form-data'},
onUploadProgress: progress => {
// 更新进度条
const percent = ((uploaded * 100) / total).toFixed(1);
updateProgress(percent);
}
}).then(() => uploaded++);
}));
// 3. 触发合并
const result = await axios.post('/upload/merge', {
fileName: file.name,
uploadId,
fileMd5
});
alert(`上传成功: ${result.data}`);
}五、企业级优化方案
1.断点续传实现
服务端增加检查接口
@GetMapping("/check/{fileMd5}/{uploadId}")
public ResponseEntity<List<Integer>> getUploadedChunks(
@PathVariable String fileMd5,
@PathVariable String uploadId) {
Path chunkDir = Paths.get(CHUNK_DIR, fileMd5 + "_" + uploadId);
if (!Files.exists(chunkDir)) {
return ResponseEntity.ok(Collections.emptyList());
}
try {
List<Integer> uploaded = Files.list(chunkDir)
.map(p -> p.getFileName().toString())
.filter(name -> name.startsWith("chunk_"))
.map(name -> name.replace("chunk_", "").replace(".tmp", ""))
.map(Integer::parseInt)
.collect(Collectors.toList());
return ResponseEntity.ok(uploaded);
} catch (IOException e) {
return ResponseEntity.status(500).body(Collections.emptyList());
}
}前端上传检查
const uploadedChunks = await axios.get(
`/upload/check/${fileMd5}/${uploadId}`
);
chunks.map((chunk, index) => {
if (uploadedChunks.includes(index)) {
uploaded++; // 已上传则跳过
returnPromise.resolve();
}
// 执行上传...
});2.分块安全验证
使用HmacSHA256确保分块完整性：
@PostMapping("/chunk")
public ResponseEntity<?> uploadChunk(
@RequestParam MultipartFile chunk,
@RequestParam String sign // 前端生成的签名
) {
// 使用密钥验证签名
String secretKey = "your-secret-key";
String serverSign = HmacUtils.hmacSha256Hex(secretKey,
chunk.getBytes());
if (!serverSign.equals(sign)) {
return ResponseEntity.status(403).body("签名验证失败");
}
// 处理分块...
}3.云存储集成（MinIO）
@Configuration
publicclassMinioConfig{
@Bean
public MinioClient minioClient(){
return MinioClient.builder()
.endpoint("http://minio:9000")
.credentials("minio-access", "minio-secret")
.build();
}
}
@Service
publicclassMinioUploadService{
@Autowired
private MinioClient minioClient;
publicvoiduploadChunk(String bucket,
String object,
InputStream chunkStream,
long length)throws Exception {
minioClient.putObject(
PutObjectArgs.builder()
.bucket(bucket)
.object(object)
.stream(chunkStream, length, -1)
.build()
);
}
}
六、性能对比
我们使用10GB文件进行测试，结果如下：
| 方案 | 平均上传时间 | 内存占用 | 失败重传开销 |
|---|---|---|---|
| 传统上传 | 3小时+ | 10GB+ | 100% |
| 分块上传(单线程) | 1.5小时 | 100MB | ≈10% |
| 分块上传(多线程) | 20分钟 | 100MB | <1% |
